Drive the Change: Slashing Energy Costs with Variable Speed...

High-resolution industrial photograph of a modern ABB ACS880 variable speed drive installed in a clean, professional control room. The shot is front-facing with a slight angle, showing the digital interface and robust housing. Lighting is neutral and even, highlighting the metallic textures and precise cabling. The background is a gently blurred industrial facility with cool, desaturated tones.

Insights, updates, and articles on industrial energy efficiency.

Objective: Technical analysis of variable speed drives (VSDs) and high-efficiency motor technology.
Target: Indian industrial manufacturing, plant managers, and electrical engineers.
Focus: ABB AC drives, IE6 SynRM motors, and LV Titanium integrated solutions.
Outcome: Strategies for reducing energy expenditure and achieving rapid ROI.

The Economic Reality of Industrial Motors in 2026

In 2026, the industrial landscape in India faces an escalating energy cost environment. For the majority of manufacturing facilities, electric motor-driven systems account for approximately 70% of total electricity consumption. A critical misunderstanding in procurement is focusing on the initial purchase price. Statistical analysis of motor life-cycle costs reveals that the purchase price represents only about 1% to 3% of the total cost of ownership (TCO). Maintenance accounts for another 1% to 2%. The remaining ~97% of the total lifetime cost is the energy consumed by the motor.

Upgrading to modern ABB AC drives and high-efficiency motors is no longer an environmental elective; it is a financial necessity for maintaining competitive margins.

Technical Classification: ABB All-Compatible Drives

Digital Controls provides a comprehensive range of ABB industrial automation solutions designed to match specific application torque and power requirements. The "all-compatible" architecture ensures a unified user interface and programming environment across the spectrum.

ACS180: Compact Efficiency for OEMs

The ACS180 is engineered for high-volume machine building and compact applications.

Power Range: 0.25 to 22 kW.
Key Feature: Book-format design for side-by-side mounting, reducing panel footprint.
Application: Small conveyors, pumps, and fans where space is at a premium.

ACS380: Machinery Drive for Precise Control

Designed for the food and beverage and material handling sectors.

Power Range: 0.25 to 22 kW.
Key Feature: Built-in brake chopper and pre-defined functional safety.
Efficiency: Optimized for high-cycling machines that require frequent start-stop operations.

ACS580: The General Purpose Standard

The ACS580 is the versatile workhorse for most industrial applications.

Power Range: 0.75 to 500 kW.
Key Feature: Energy optimizer function that regulates the motor flux to ensure maximum efficiency at partial loads.
Feedback: Built-in energy calculators provide real-time data on kWh saved, CO2 reduction, and money saved in local currency (INR).

ACS880: High-Performance Industrial Control

The ACS880 is built for the most demanding processes.

Power Range: 0.55 to 6000 kW.
Key Feature: Direct Torque Control (DTC) technology providing precise speed and torque control without encoder feedback.
Energy Recovery: Regenerative variants can feed braking energy back into the plant grid, reducing waste heat and overall consumption by up to 30%.

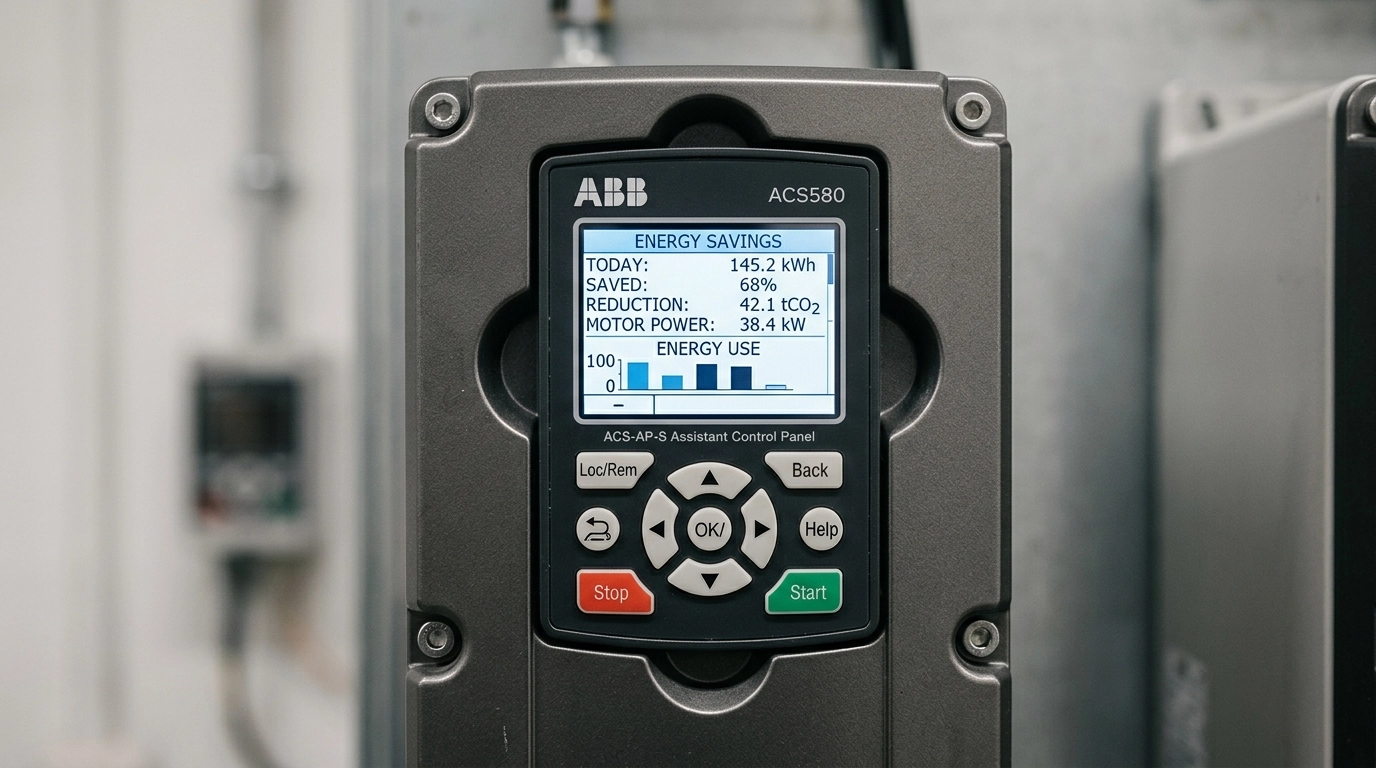

Close-up technical photograph of an ABB ACS580 control panel. The screen is illuminated, showing real-time energy efficiency metrics. The focus is sharp on the buttons and display, with the metallic texture of the drive casing clearly visible. Lighting is soft and diffused to prevent glare on the interface. Neutral, professional color palette.

IE6 SynRM: The 2026 Efficiency Benchmark

As of 2026, the industry has transitioned beyond IE3 and IE4 standards. ABB's IE6 Hyper-Efficiency Synchronous Reluctance (SynRM) motors represent the current technological peak.

Performance Specifications

Efficiency: IE6 motors achieve up to 76% improvement in energy savings compared to IE5 counterparts.
Construction: Magnet-free design. By eliminating rare earth magnets, the motor avoids the supply chain volatility and environmental impact associated with traditional permanent magnet motors.
Thermal Performance: SynRM motors run cooler than induction motors, extending the life of bearings and insulation.

ROI Projections

In a standard 110 kW motor application operating at 75% average power, the transition from an IE4 induction motor to an IE6 SynRM motor results in an ROI of approximately 7 to 8 months at current Indian energy tariffs. Over a 20-year service life, the cumulative savings can exceed ₹45 lakhs per unit, depending on regional power costs.

LV Titanium: The Integrated Powerhouse

For applications requiring maximum simplicity and space efficiency, the LV Titanium integrated motor and drive is the preferred solution in 2026.

System Integration

The LV Titanium combines an IE5 permanent magnet motor with a drive module mounted directly on the motor frame. This eliminates the need for long cable runs between the control panel and the motor, reducing Electromagnetic Interference (EMI) and installation costs.

Range: 1.5 to 30 kW.
Configuration: Plug-and-play. The factory-optimized pairing ensures that the motor and drive operate at peak efficiency across the entire speed range without manual commissioning.
Footprint: Typically two frame sizes smaller than equivalent induction motor setups.

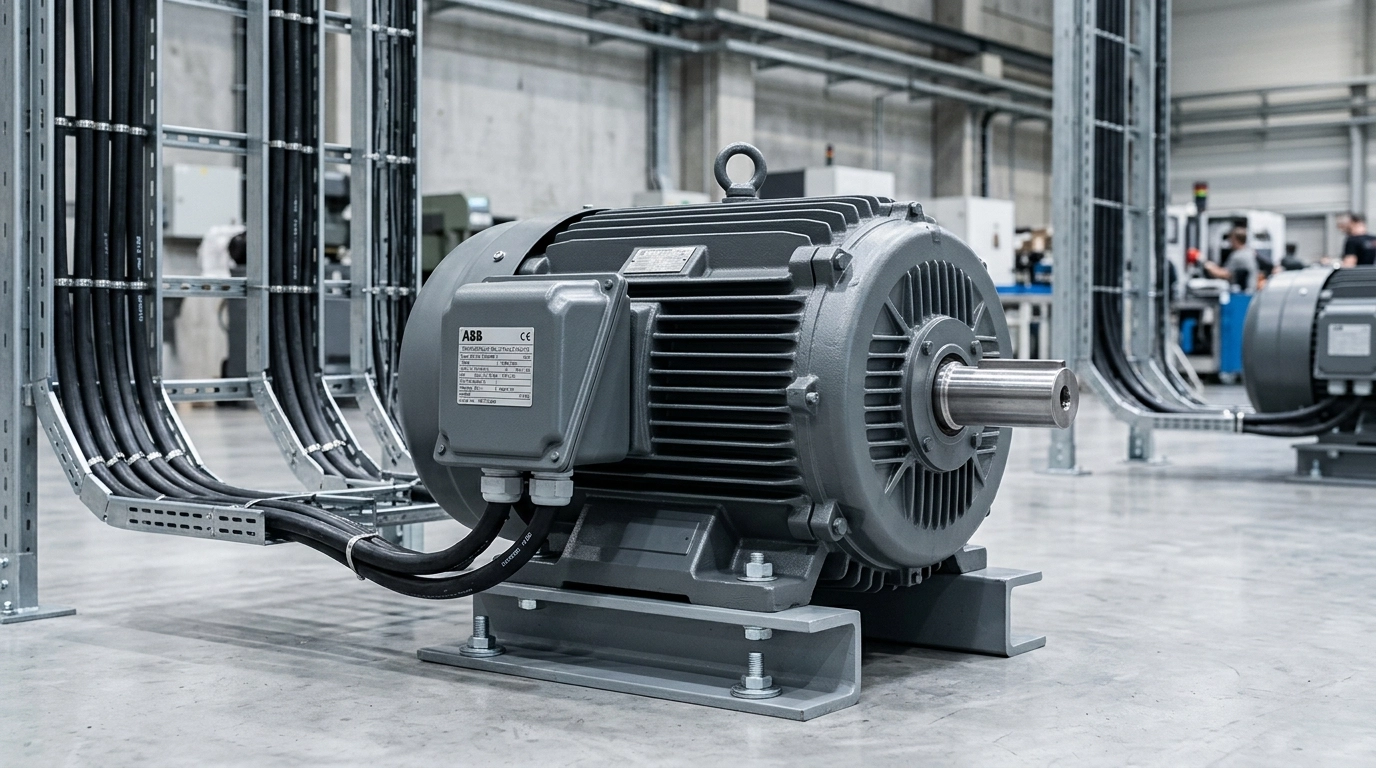

Professional photograph of an ABB SynRM motor on a factory floor. The unit is shown in a clean industrial setting with visible housing details, cooling fins, and shaft assembly. The background features structured cabling and a neutral production environment. The image uses a slight-angle perspective to emphasize technical construction and realistic scale.

Deployment Strategies for Indian Manufacturing

The implementation of variable frequency drives is most effective when targeted at centrifugal loads, such as pumps and fans. Under the Affinity Laws, reducing the speed of a pump by 20% can reduce the energy consumption by nearly 50%.

Digital Controls: Turnkey Implementation

Digital Controls acts as the bridge between high-spec ABB hardware and operational reality. Our process includes:

Energy Audits: Utilizing Fluke test and measurement instruments to identify inefficient motor systems.
Custom Panel Design: Manufacturing custom control panels that integrate ABB drives with low voltage switchgear.
System Integration: PLC programming and commissioning for seamless automation.
Support: Pan-India technical support for ABB and Fluke systems.

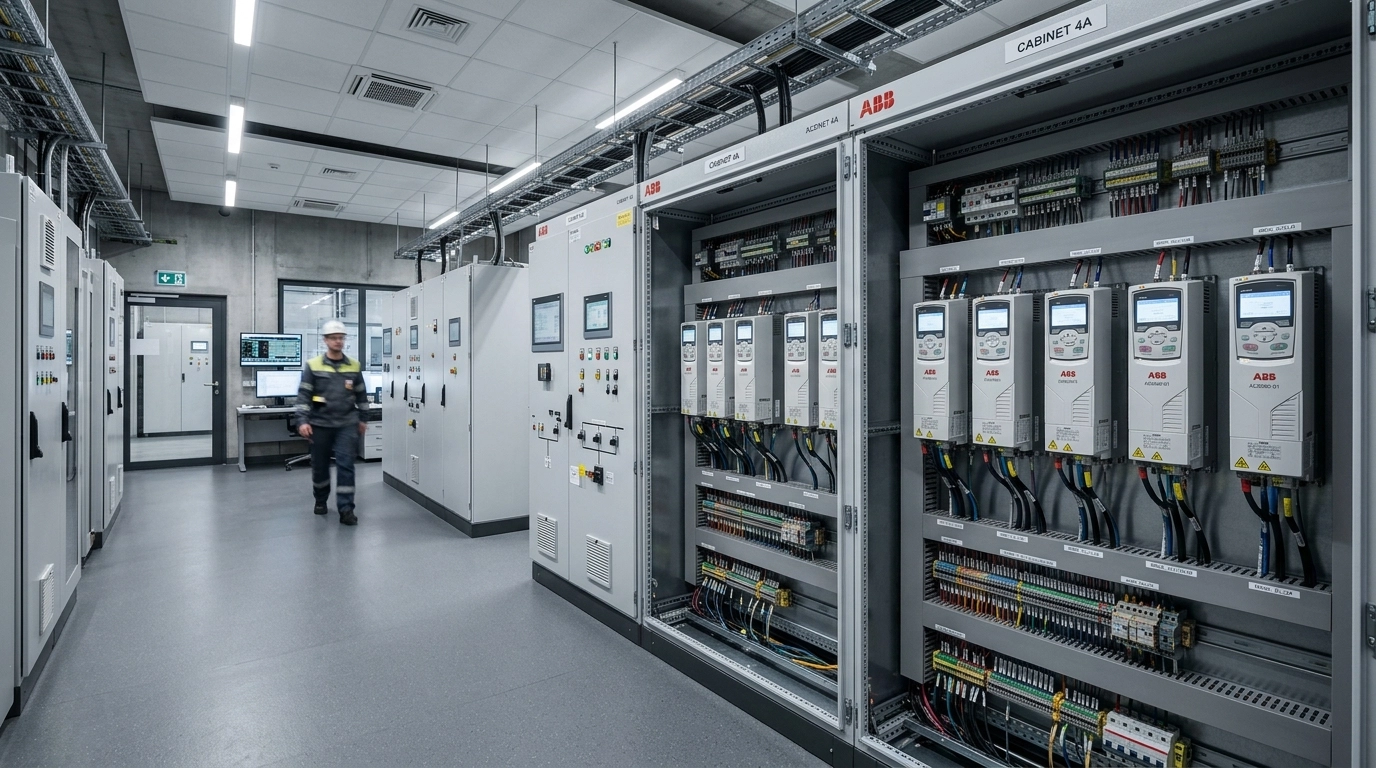

Wide-angle industrial photograph of a dedicated control room with a lineup of custom ABB drive panels manufactured by Digital Controls. The panels are neatly wired with visible labels. An engineer is seen in the background, out of focus, highlighting the scale of the installation. Cool, professional lighting and a desaturated color palette reinforce a technical atmosphere.

Conclusion: The Path Forward

In 2026, energy efficiency is the primary lever for operational cost reduction. By upgrading to ABB ACS series drives and IE6 SynRM motors, industrial facilities can mitigate the impact of rising electricity costs and achieve payback in less than a year.

Digital Controls provides the technical expertise and genuine ABB hardware required for these upgrades. For a technical consultation or energy audit of your facility, contact our engineering team.

Technical Reference Summary:

Total Ownership Cost: ~97% energy, 2% maintenance, 1% purchase.
Primary Technologies: IE6 SynRM, ACS880 Regenerative, LV Titanium.
Efficiency Gains: Up to 50% on centrifugal loads.
Service Provider: Digital Controls, Authorized ABB & Fluke Partner.

Contact Digital Controls for Energy Efficiency Solutions
