Authorised ABB Channel Partner

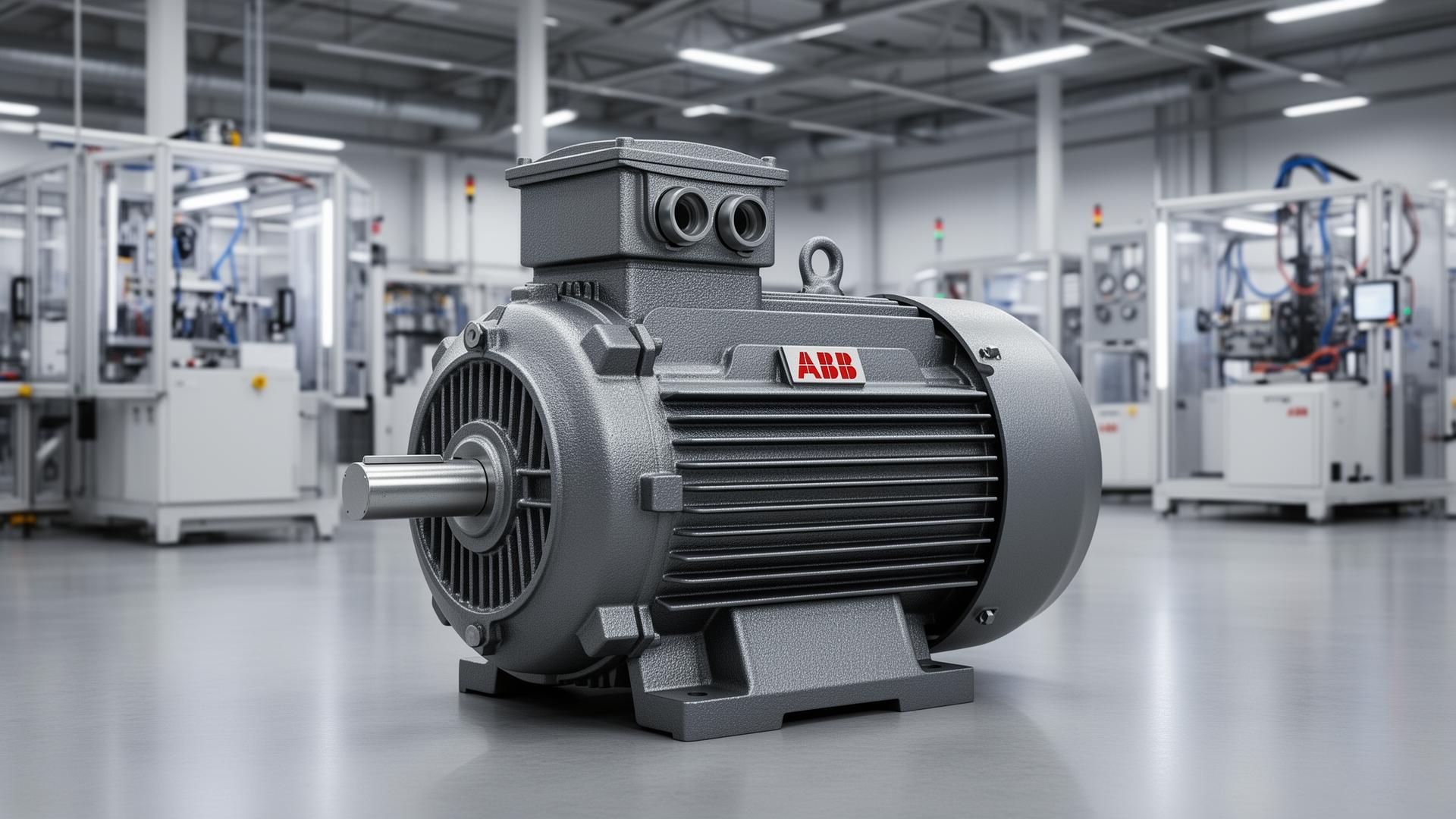

Three Phase Induction Motors — Reliable, Built for India
ABB TEFC motors from 0.18 kW to 375 kW — cast iron and aluminium frames, foot & flange mounted, 415V/50Hz. Get the right motor with expert sizing, fast delivery, and nationwide after-sales support.
3,000+
Motors Supplied
25+
Years of Expertise
48 hr
Avg. Dispatch Time
98%
Customer Retention
Why Choose ABB Three Phase Motors?
Whether you need a 1440 RPM 4-pole motor for pumps or a 2880 RPM 2-pole motor for compressors — ABB induction motors deliver unmatched efficiency, reliability, and value.
High Efficiency Standards
ABB motors are available across IE2 to IE5 efficiency classes, helping you meet IS 12615 / IEC 60034-30-1 norms and reduce electricity costs significantly over the motor's lifetime.
Built for Indian Conditions
TEFC (Totally Enclosed Fan Cooled) design with IP55 protection, Class F insulation, and tropical-grade varnish — engineered for dust, humidity, and voltage fluctuations.
Wide Speed & Frame Range
From 0.37 kW to 375 kW, 2-pole (2880 RPM) to 8-pole (720 RPM), in foot (B3), flange (B5/B14), and combination mountings — one supplier for every application.
Low Maintenance, Long Life
Precision-balanced rotors, sealed bearings (10,000+ hour grease life), and robust cast iron or aluminium bodies deliver 20+ years of reliable operation.
ABB Motor Range — Cast Iron to Aluminium
We stock and supply the complete ABB low-voltage motor portfolio. Every motor comes with expert application support, proper sizing, and fast dispatch from our warehouse.
Cast Iron Frame Motors
0.37 – 375 kWHeavy-duty TEFC motors with cast iron body for harsh environments. Available in B3 foot mount, B5/B14 flange, and combination mountings. 415V ± 10%, 50 Hz.
Aluminium Frame Motors
0.18 – 30 kWLightweight, corrosion-resistant motors ideal for food processing, packaging, and clean environments. Up to 40% lighter than cast iron equivalents.
Brake Motors
0.37 – 45 kWDC spring-applied fail-safe brake with 3–5 ms response time. Essential for hoists, conveyors, and any load that must hold position on power loss.
Authorised Channel Partner
Industries We Serve
Our three phase electric motors power critical operations across manufacturing, infrastructure, and process industries.
Pumps & Water Systems
Fans & Blowers
Conveyors & Crushers
Compressors & Machine Tools
Technical Specifications
415V ± 10%, 50 Hz Supply
Designed for Indian power conditions with built-in tolerance for voltage fluctuations up to ±10% — no additional stabiliser required.
Mounting Options: B3, B5, B14, B35
Foot mounted (B3), flange mounted (B5/B14), and combination (B35) options to suit any installation — horizontal or vertical.
IP55 / IP56 Protection
Totally Enclosed Fan Cooled (TEFC) construction protects against dust ingress and water jets — suitable for outdoor and washdown areas.
Class F Insulation, Class B Rise
Insulation rated to 155°C with temperature rise limited to 80K provides a significant thermal margin, extending winding life.
IS 12615 & BIS Certified
All motors carry ISI mark and comply with IS 12615 energy efficiency norms — mandatory for motors sold in India since 2018.
Need the Right Motor for Your Application?
Share your requirements — power rating, speed, mounting type, and operating conditions — and our engineers will recommend the right ABB motor with a competitive quotation.
Motor Efficiency Classes — IE2 to IE5
Choose the right efficiency class based on your running hours, energy costs, and regulatory requirements. Higher IE classes deliver greater lifetime savings.
High Efficiency
Entry-level compliant motors suitable for low-duty or intermittent applications where upfront cost is the priority.
Premium Efficiency
India's minimum standard under IS 12615. The best balance of cost and savings for most continuous-duty industrial applications.
Super Premium
3–5% more efficient than IE3. Ideal for high-running-hour loads like pumps, fans, and compressors where energy cost dominates TCO.
Ultra Premium
The highest available efficiency class. Designed for 24/7 critical processes where every percentage point of efficiency translates to substantial savings.
Frequently Asked Questions
What is a three phase induction motor?
A three phase induction motor is an AC electric motor that converts electrical energy into mechanical rotation using electromagnetic induction. It is the most widely used motor type in industry due to its simplicity, ruggedness, and low maintenance. The stator creates a rotating magnetic field that induces current in the rotor, producing torque without brushes or commutators.
What is the difference between a 2-pole and 4-pole motor?
A 2-pole motor runs at approximately 2880 RPM (synchronous 3000 RPM) at 50 Hz, while a 4-pole motor runs at approximately 1440 RPM (synchronous 1500 RPM). 2-pole motors are used for high-speed applications like compressors and centrifugal pumps. 4-pole motors are the most common choice for general-purpose applications including conveyors, fans, and positive-displacement pumps.
What does TEFC mean in motors?
TEFC stands for Totally Enclosed Fan Cooled. It means the motor housing is sealed to prevent dust and moisture from entering the windings, and an external fan mounted on the shaft provides cooling. TEFC motors with IP55 rating are the standard for Indian industrial environments where dust, humidity, and ambient temperature are concerns.
What is the difference between B3 and B5 mounting?
B3 is foot mounting — the motor sits on a base frame and is bolted down through its feet. It is the most common mounting type. B5 is flange mounting — the motor is bolted directly to the driven equipment via a large flange on the drive end. B14 is a smaller flange variant. B35 combines both foot and flange for maximum flexibility.
What is IE3 efficiency in motors?
IE3 (Premium Efficiency) is an international efficiency class defined by IEC 60034-30-1. IE3 motors are 2–4% more efficient than IE2 motors, which translates to significant electricity savings over the motor's 15–20 year lifespan. In India, IE3 is now the minimum efficiency standard for most industrial motors under IS 12615.
Do you supply ABB motors across India?
Yes. As an authorised ABB channel partner, we supply and support ABB three phase induction motors pan-India. We maintain ready stock of popular frame sizes (71–315) and can arrange fast dispatch for standard and custom requirements including special voltages, mounting variants, and hazardous area motors.
