Highly Reliable and Modern Range of Soft Starters
**Content Summary**
Content Summary
- Technical specifications of ABB PSR, PSE, and PSTX ranges.
- Operational benefits for industrial motor control.
- Application-specific selection criteria.
- Integration with industrial automation systems.
Overview
Soft starters represent a critical component in industrial motor control, designed to manage the acceleration and deceleration phases of asynchronous motors. By controlling the voltage supply, these devices reduce the inrush current and mechanical torque spikes during startup. Digital Controls provides access to the full range of ABB soft starters, categorized into three distinct series: PSR, PSE, and PSTX. Each series is engineered to address specific operational requirements, from simple space-saving installations to complex, high-reliability industrial processes.
Technical Advantages of Soft Starting
Traditional starting methods, such as Direct-On-Line (DOL) or Star-Delta, introduce significant electrical and mechanical stress. Soft starters mitigate these issues through:
- Reduction of Inrush Current: Prevents voltage dips in the electrical network.
- Minimized Mechanical Wear: Eliminates torque surges that damage belts, gears, and couplings.
- Energy Efficiency: Built-in bypass contactors reduce heat dissipation and energy loss during steady-state operation.
- Extended Motor Life: Controlled thermal stress on motor windings.
PSR – The Compact Range
The PSR series is the most compact starting solution within the ABB portfolio. It is designed for basic applications where space is at a premium and simple functionality is required.
Technical Specifications:
- Current Range: 3 A to 105 A.
- Main Voltage: 208–600 V AC.
- Control Supply Voltage: 100–240 V AC or 24 V AC/DC.
- Starts per Hour: Optimized for up to 100 starts per hour.
Functional Features:
The PSR utilizes a simple potentiometer-based setup for ramp time and initial/end voltage. It includes a built-in bypass to ensure minimal energy consumption once the motor reaches full speed. The unit is compatible with ABB’s manual motor starters, allowing for a seamless, coordinated assembly for short-circuit protection.
Primary Applications:
- Small Pumps: Reliable acceleration without hydraulic shocks.
- Fans: Smooth startup to protect drive belts.
- Conveyors: Prevents product damage by eliminating jerky starts.
For more information on compact motor solutions, visit our Motors page.

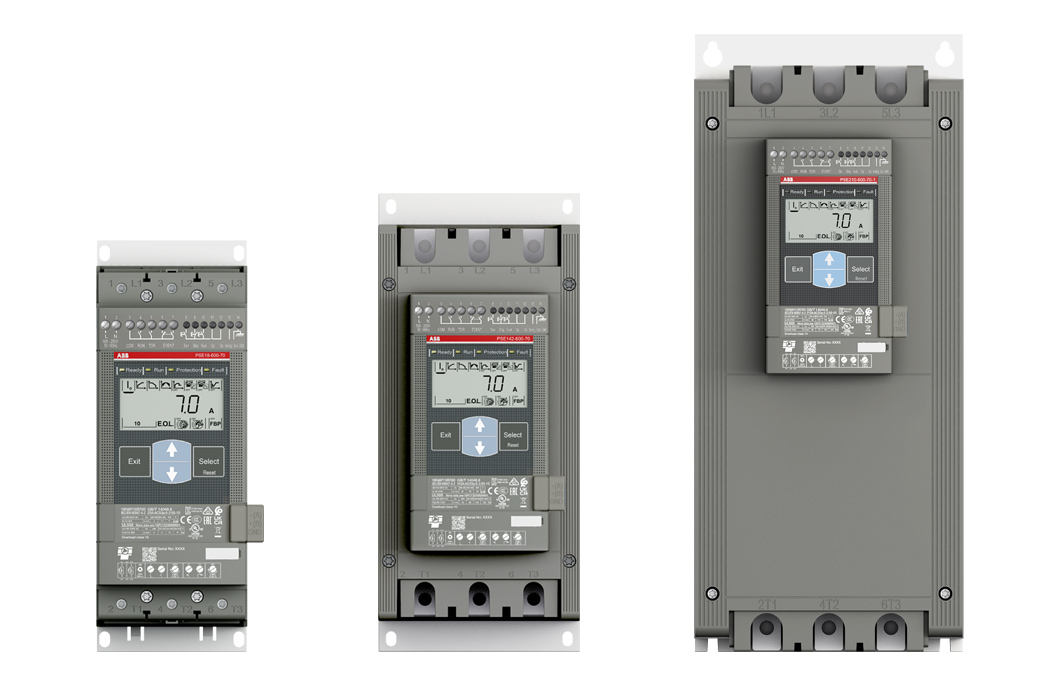

PSE – The Efficient Range
The PSE series is a general-purpose soft starter range that balances performance with cost-efficiency. It is the first compact soft starter to include torque control, making it particularly effective for fluid handling applications.
Technical Specifications:
- Current Range: 18 A to 370 A.
- Main Voltage: 208–600 V AC.
- Control Supply Voltage: 100–250 V AC.
Key Features:
- Torque Control: Provides a linear velocity ramp for pumps, eliminating water hammer effects during both start and stop cycles.
- Motor Protection: Integrated electronic overload protection, underload protection, and locked rotor protection.
- Communication: Built-in Modbus RTU support for integration into SCADA and PLC systems.
- Interface: Language-neutral illuminated display and four-button keypad for precise parameterization.
Industrial Performance:
The PSE series is treated with coated circuit boards to ensure reliability in harsh environments, such as wastewater treatment plants and chemical processing facilities. The inclusion of a built-in bypass reduces the overall footprint of the control panel and minimizes cooling requirements.
Explore our Control Panels to see how PSE units are integrated into custom solutions.

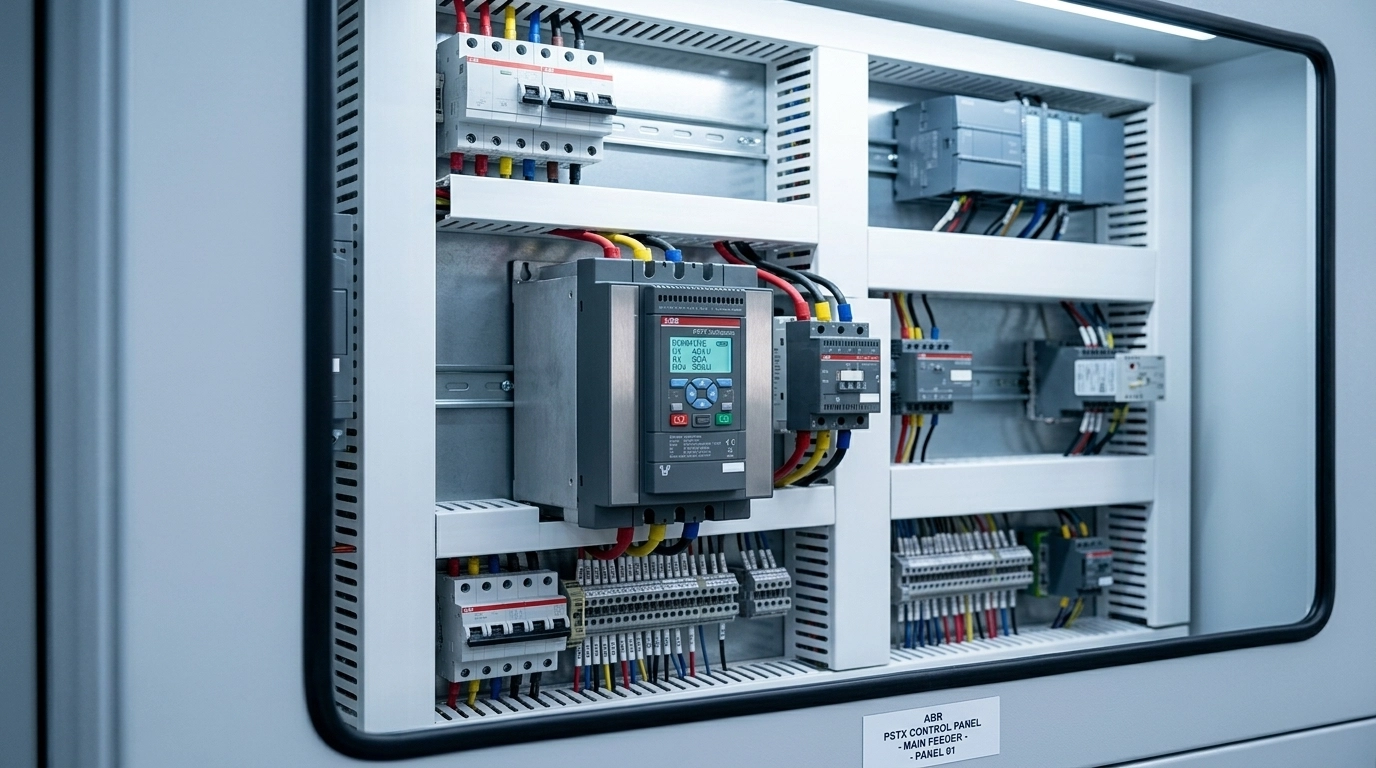

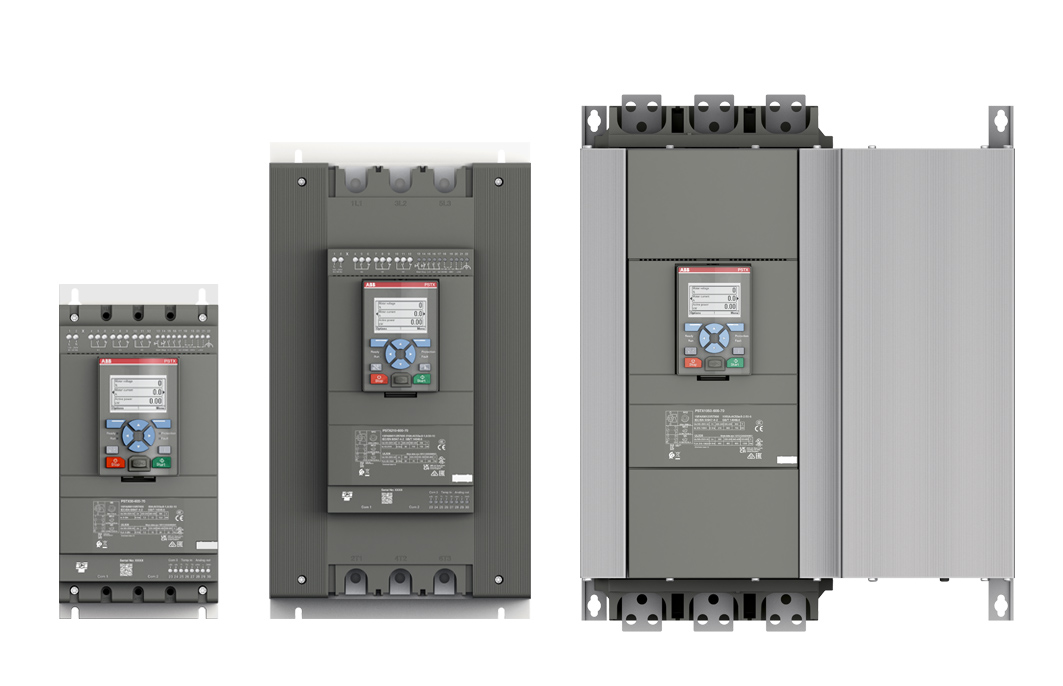

PSTX – The Advanced Range
The PSTX range is a comprehensive motor control solution. It offers complete protection and advanced functionality for critical industrial processes. It is designed to handle both load and network irregularities, ensuring maximum uptime.
Technical Specifications:
- Current Range: 30 A to 1250 A (Up to 2160 A inside-delta configuration).
- Main Voltage: 208–690 V AC.
- Operating Temperature: -25 °C to +60 °C.
Advanced Functionality:
- Complete Motor Protection: Includes PT-100 inputs, earth fault protection, and over/under voltage monitoring.
- Pump Cleaning: Capabilities to reverse motor direction to clear debris from impellers.
- Full Torque Control: Optimized for high-inertia applications and complex fluid dynamics.
- Detachable Keypad: IP66-rated interface that can be mounted on the panel door for safe external operation.
- Dynamic Brake: Allows for rapid deceleration of high-inertia loads like large fans or saws.
Integration Capabilities:
The PSTX features built-in Anybus modules, supporting all major industrial protocols including Profinet, Profibus, and EtherNet/IP. This makes it a preferred choice for plants utilizing PLC Systems for automated plant management.
Selection Criteria for Industrial Applications
Selecting the appropriate soft starter involves evaluating the application's complexity and the motor's environment. The following table provides a generalized comparison:
| Feature | PSR (Compact) | PSE (Efficient) | PSTX (Advanced) |
|---|---|---|---|
| Current Range | 3 - 105 A | 18 - 370 A | 30 - 1250 A |
| Torque Control | No | Yes (Pump only) | Yes (Full) |
| Motor Protection | External required | Built-in | Comprehensive |
| Display | LED Indicators | Backlit LCD | Multi-language Graphical |
| Bypass | Built-in | Built-in | Built-in |
| Fieldbus | Optional | Modbus RTU | Multi-protocol built-in |
Implementation and System Integration
At Digital Controls, we provide turnkey solutions that extend beyond the supply of individual components. Our team handles the design and manufacture of custom control panels incorporating these soft starters to meet specific Indian industrial standards.
Successful implementation requires:
- Load Analysis: Determining the starting torque and current requirements of the driven machine.
- Environment Assessment: Evaluating temperature, humidity, and chemical exposure for proper enclosure selection.
- Protection Coordination: Selecting appropriate Low Voltage Switchgear for short-circuit and branch circuit protection.
- Commissioning: Fine-tuning ramp times and torque limits to ensure optimal mechanical performance.
Summary
The ABB soft starter range, PSR, PSE, and PSTX, offers a scalable solution for industrial motor control. Whether the priority is space optimization (PSR), efficiency in pump applications (PSE), or advanced process control (PSTX), these devices ensure operational reliability and energy savings.
For technical support or to request a quote, please visit our Contact Page or use our Online Enquiry Form. Digital Controls is an authorized ABB partner, delivering genuine products and comprehensive system integration across India.
