Maximizing Performance: The Power of Integrated Motors and Drives for Efficient Control

Industrial automation systems require precision, reliability, and energy optimization. The integration of high-efficiency motors with advanced variable frequency drives (VFDs) serves as the foundation for modern process control. This article examines the technical synergy between ABB IE3/IE4 motors and the ABB ACS series AC drives, highlighting how their combined application enhances performance, reduces mechanical wear, and maximizes energy savings across manufacturing and industrial facilities.

Content Overview:

• Technical specifications of IE3 and IE4 motors
• Control capabilities of ABB ACS series drives
• Mechanical and energy benefits of integrated systems
• System design and commissioning services by Digital Controls

ABB IE3 and IE4 Motors: The Foundation of Efficiency

Efficiency in industrial motors is categorized by International Efficiency (IE) classes. ABB’s range of three-phase induction motors includes IE2, IE3, and IE4 models, each designed to minimize energy losses during conversion from electrical to mechanical energy.

• IE3 (Premium Efficiency): Standard for most modern industrial applications, offering significant energy savings over legacy IE1 and IE2 units.
• IE4 (Super Premium Efficiency): Represents the current peak of induction motor technology, featuring approximately 20% lower losses than IE3 motors.
• Reduced Thermal Load: Lower energy losses result in cooler operation, extending the lifespan of insulation and bearings.
• Compatibility: Designed for seamless integration with ABB AC drives, ensuring stable performance across varying load profiles.

High-efficiency motors often feature different starting characteristics compared to standard motors. IE4 motors, specifically, may exhibit higher starting currents. When operated across-the-line, these currents can stress the electrical infrastructure. Integrating these motors with a VFD addresses these electrical challenges through controlled acceleration and deceleration.

ABB AC Drives: The Intelligent Controller

The ABB ACS series, including the ACS580 general-purpose drive and the ACS880 industrial drive, provides the intelligence required to manage motor performance dynamically. These drives are engineered to extract maximum efficiency from high-performance motors.

Key Drive Features:

1. Direct Torque Control (DTC): ABB’s signature motor control technology provides high precision in speed and torque without the need for an encoder. DTC reacts to changes in load within microseconds, maintaining process stability.
2. Energy Optimization Mode: The drive automatically adjusts the motor flux to match the actual load requirements, reducing energy consumption during partial load conditions.
3. Built-In Energy Counters: Integrated tools monitor and calculate energy savings in kilowatt-hours, currency, or CO2 emissions, providing plant managers with actionable data.
4. Support for Multiple Motor Types: ACS drives are compatible with induction motors, permanent magnet motors, and synchronous reluctance motors (SynRM), allowing for future-proof system upgrades.

The Synergy: Why Integration Matters

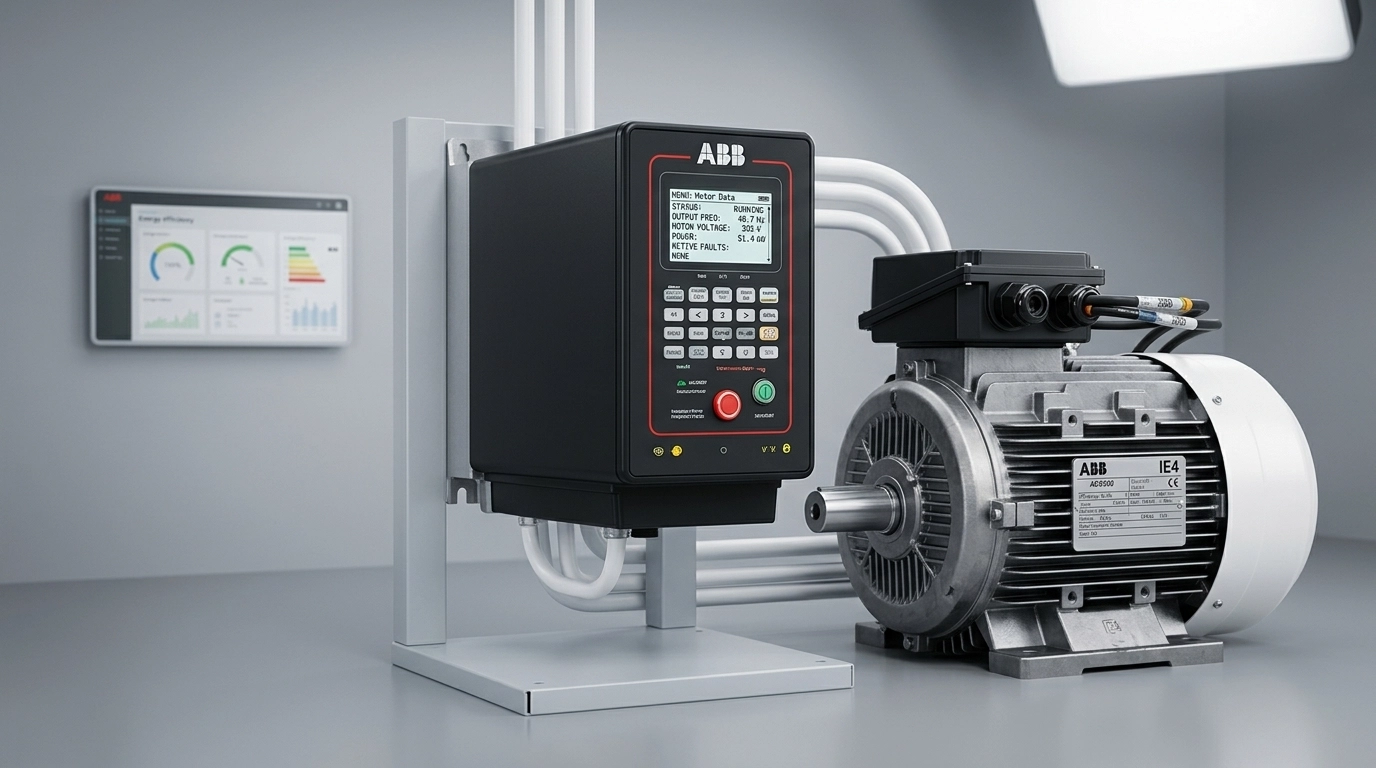

The true value of an industrial automation system is realized when the motor and drive work in a coordinated manner. Using an ABB VFD with an IE4 motor transforms a simple mechanical component into a responsive, data-driven system.

Optimized Energy Consumption

In centrifugal applications like pumps and fans, energy consumption is proportional to the cube of the speed. Reducing the speed by only 20% can result in nearly 50% energy savings. When an IE4 motor’s inherent efficiency is combined with the VFD’s ability to run at the exact required speed, the total system efficiency (IES) reaches its highest possible rating.

Reduction in Mechanical Wear

Integrated systems utilize soft-starting and soft-stopping profiles. By eliminating the mechanical "kick" associated with direct-on-line (DOL) starting, the system reduces stress on:

• Couplings and gearboxes
• Belts and pulleys
• Motor bearings
• Internal pipe pressure (eliminating water hammer in pumping systems)

Precision Process Control

Advanced automation solutions require more than just starting and stopping. The combination of ACS drives and high-efficiency motors allows for:

• Constant torque across a wide speed range.
• High starting torque for heavy-load applications like conveyors.
• Integration with ABB PLC systems for complex sequence control and multi-axis synchronization.

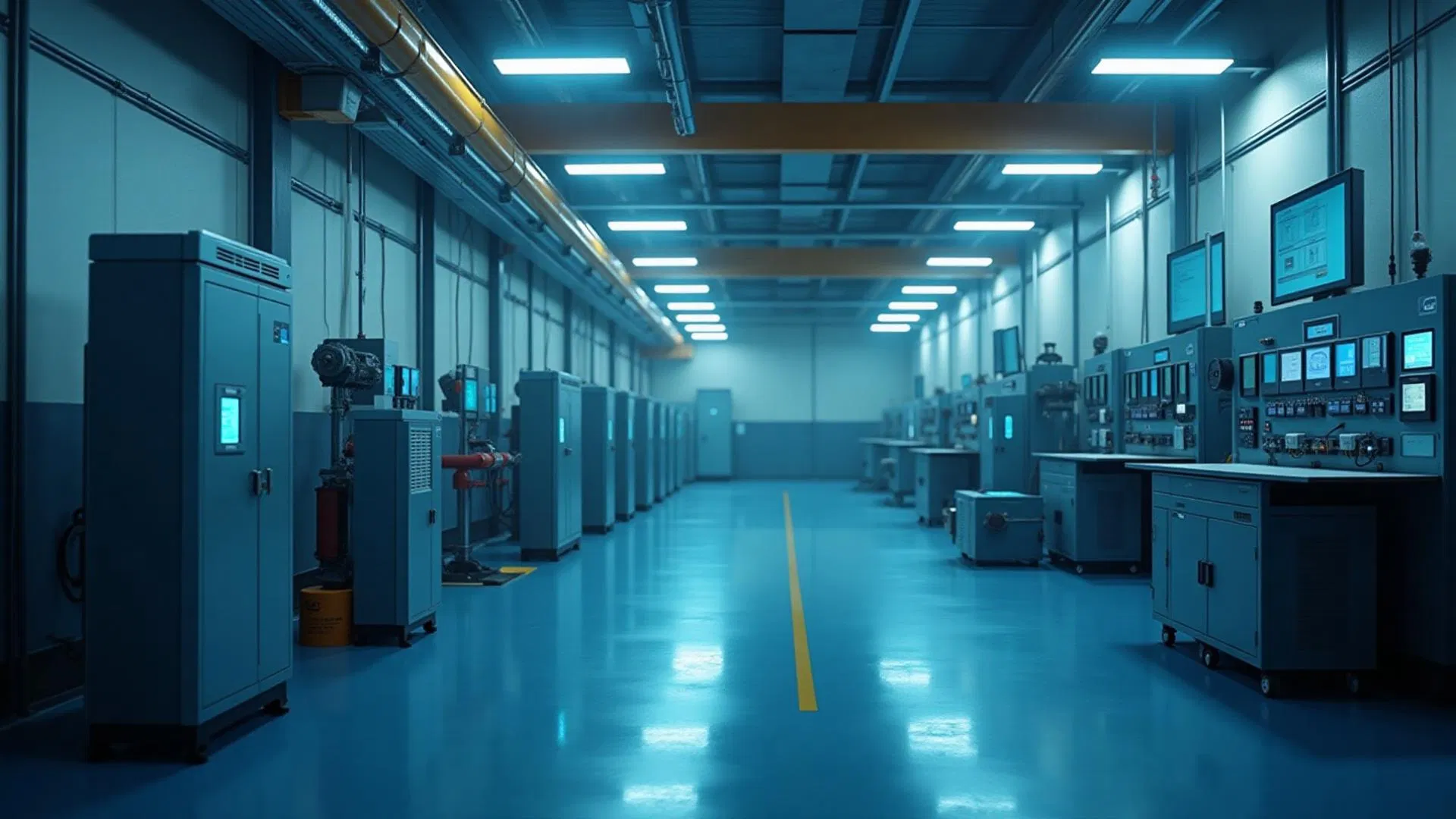

Turnkey Solutions: From Design to Commissioning

Effective integration requires technical expertise in both electrical engineering and mechanical systems. Digital Controls provides comprehensive turnkey solutions for industrial facilities. Our process ensures that the selected motor and drive combination is perfectly sized for the specific application, preventing over-specification and unnecessary capital expenditure.

Services Provided:

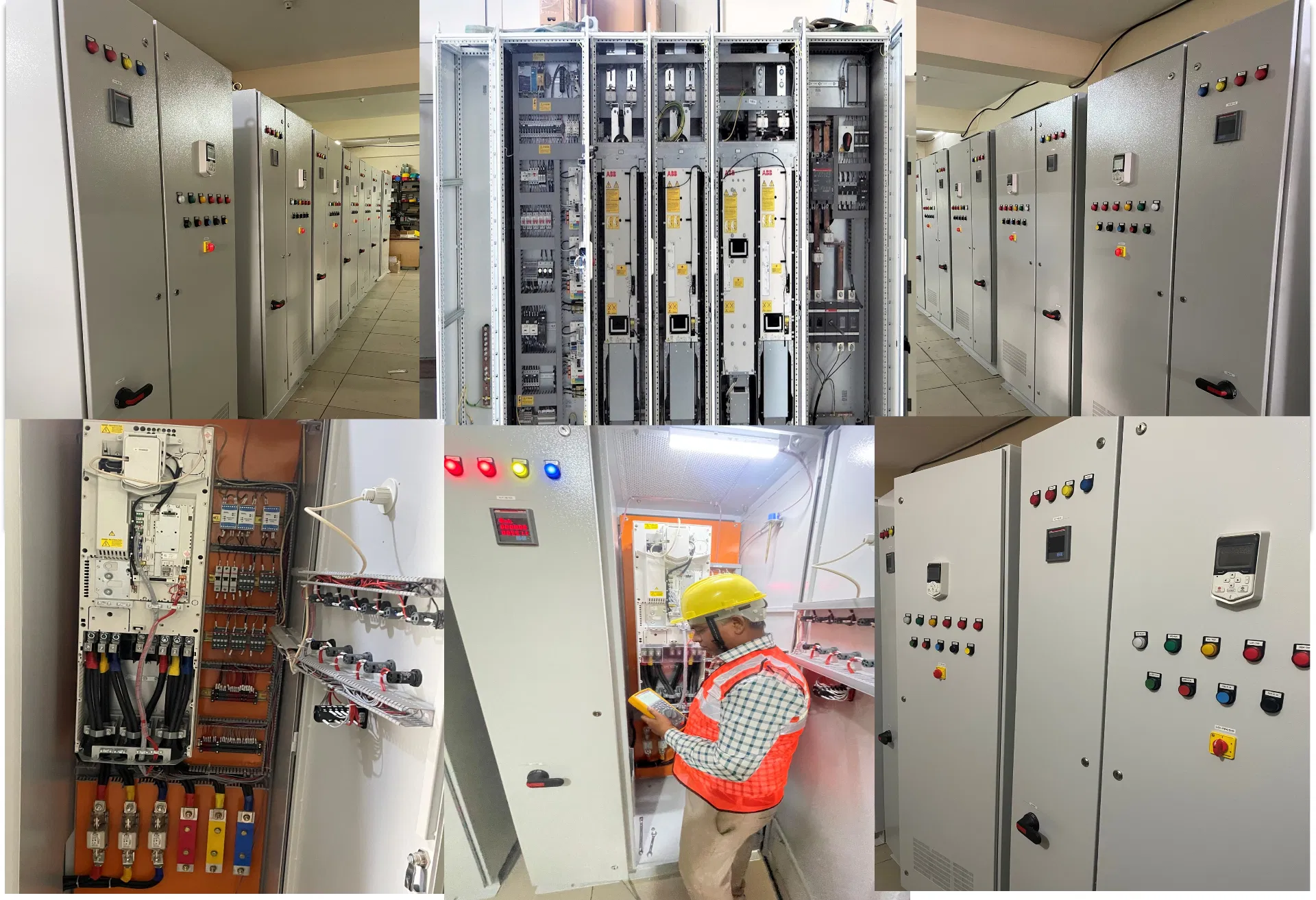

• System Design: Engineering custom control panels and LV switchgear that house ABB drives and protection components.
• Integration: Incorporating ABB PLCs and softstarters for a unified automation environment.
• Testing and Validation: Utilizing Fluke test and measurement instruments to verify power quality, motor insulation, and drive performance.
• Commissioning: On-site parameter tuning to ensure the drive’s control loops are optimized for the actual load dynamics.

Application Highlights

The benefits of pairing ABB drives and motors are evident in several key sectors:

Manufacturing and Processing

In manufacturing environments, precise speed control is essential for maintaining product quality. ACS880 drives paired with IE3/IE4 motors provide the necessary torque accuracy for extruders, mixers, and winding machines. The ability to maintain constant tension or pressure through PID control loops integrated within the drive simplifies the overall control architecture.

HVAC and Building Automation

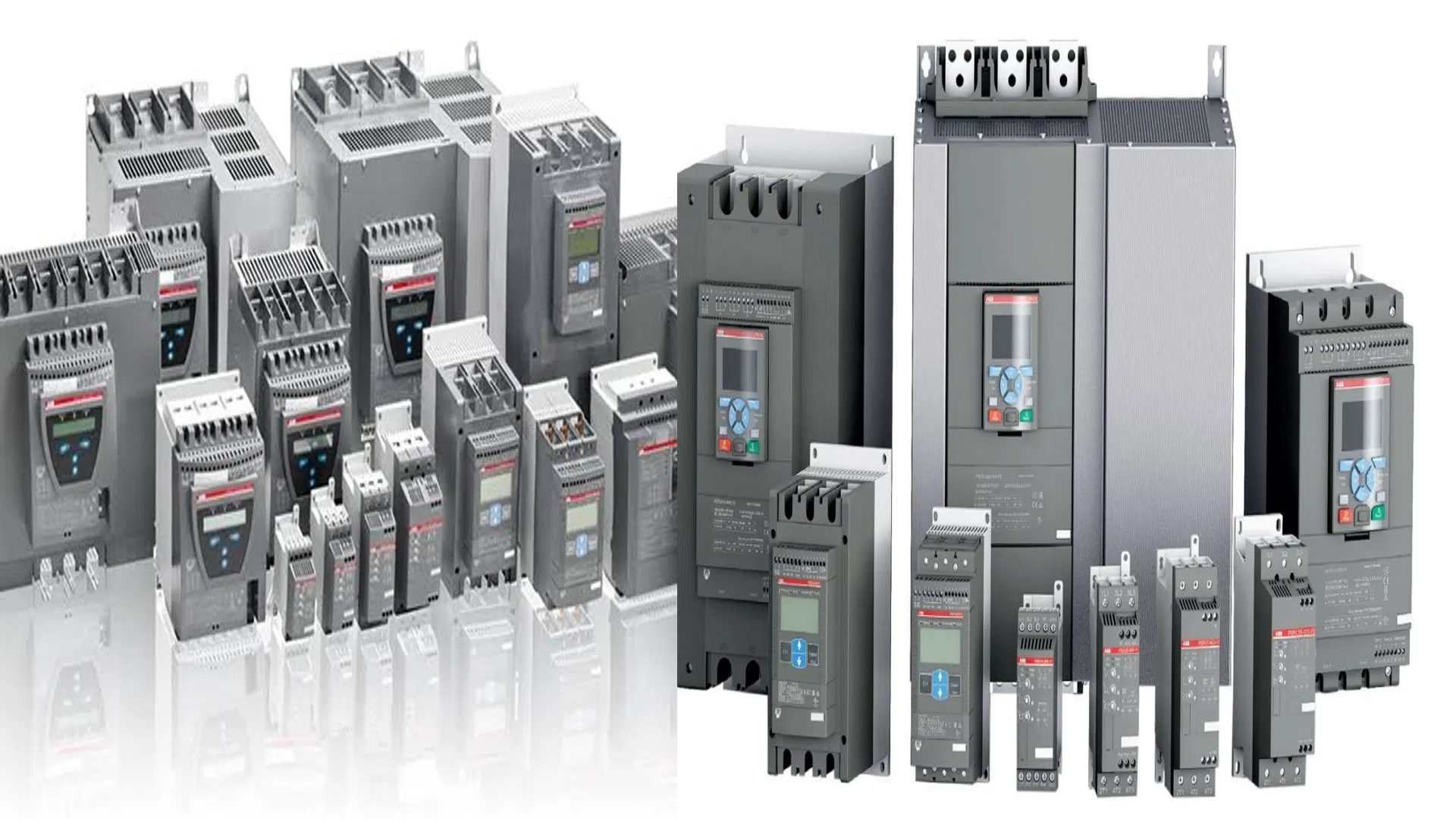

Efficiency is critical in continuous-duty applications like fans and blowers. Utilizing ABB softstarters for simple bypass needs or ACS580 drives for variable load demands significantly reduces the operational cost of large-scale facilities.

Pumping and Water Management

The combination of IE4 motors and ACS drives with specialized "Pump Control" software modules helps manage multi-pump systems. These features include anti-jam functions, pipe cleaning cycles, and dry-run protection, ensuring the longevity of both the electrical and hydraulic components of the system.

Technical Conclusion

The integration of ABB IE3/IE4 motors with ACS series drives is a strategic investment in industrial performance. By prioritizing the synergy between high-efficiency hardware and intelligent control software, facilities can achieve:

• Maximum energy efficiency ratings (IES2).
• Extended equipment lifecycle through reduced mechanical and thermal stress.
• Superior process precision through advanced motor control algorithms like DTC.

Digital Controls serves as an authorized partner for ABB and Fluke, delivering genuine products and specialized technical support across India and global markets. For more information on optimizing your motor and drive systems, contact our technical team or visit our solutions page.
